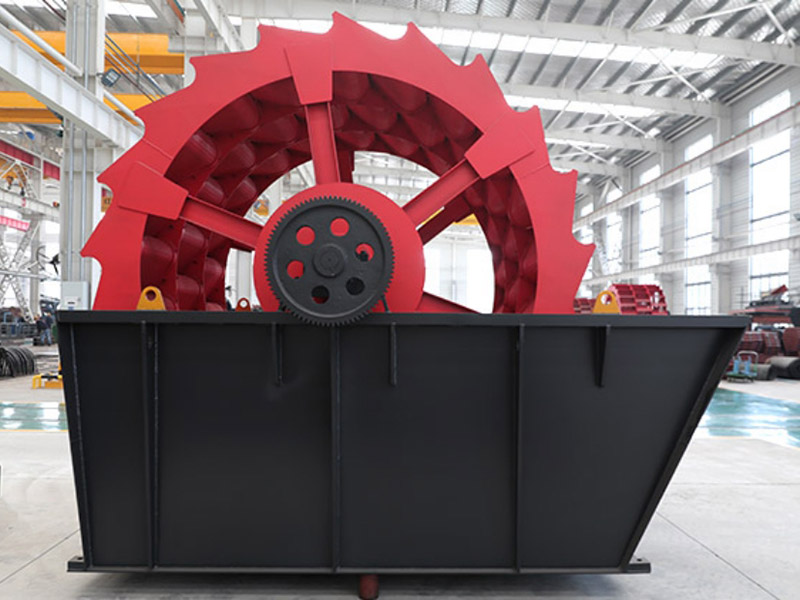

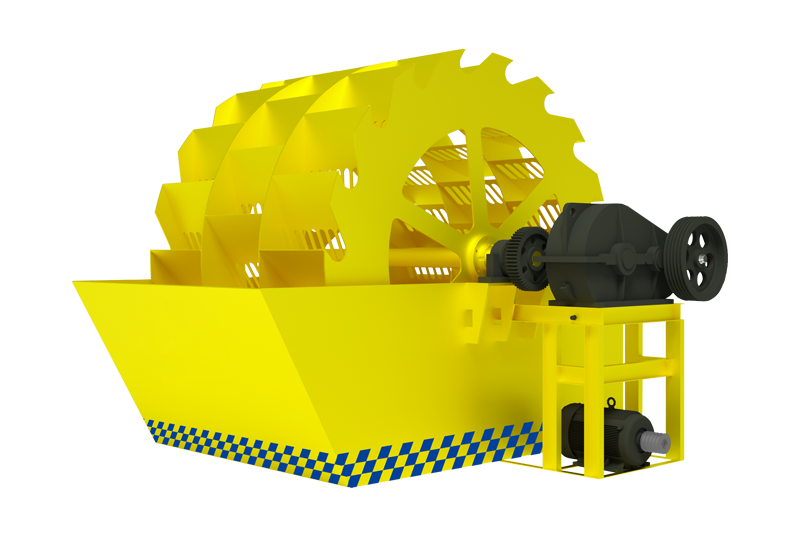

What is wheel sand washing machine?

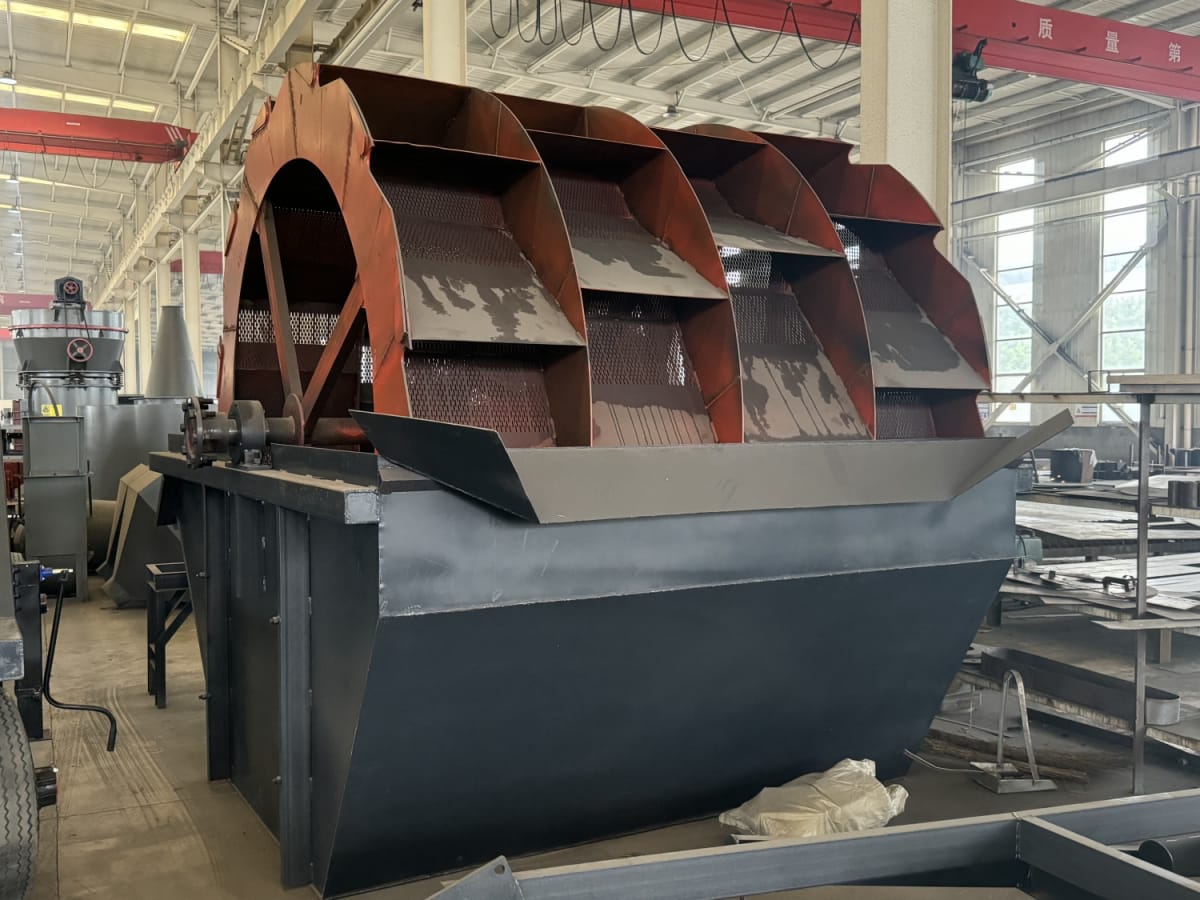

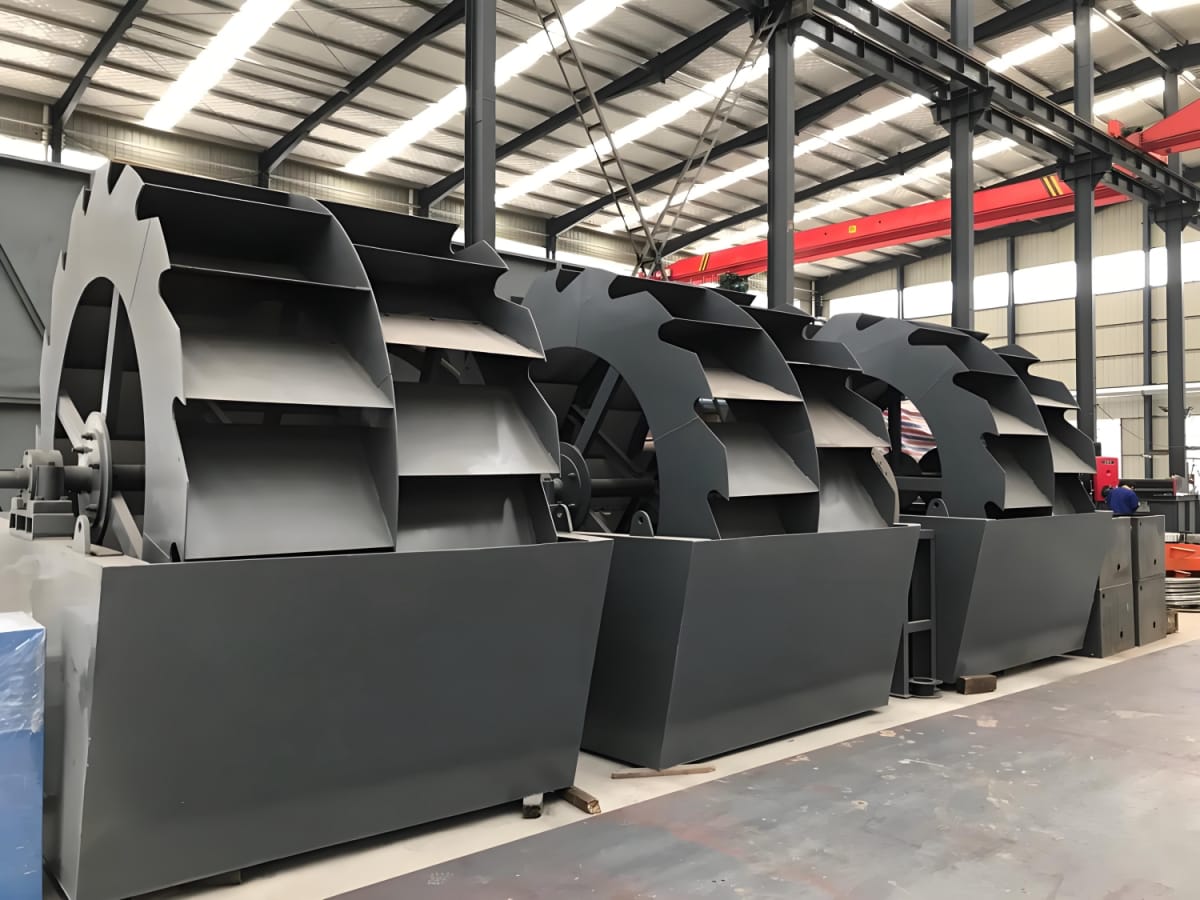

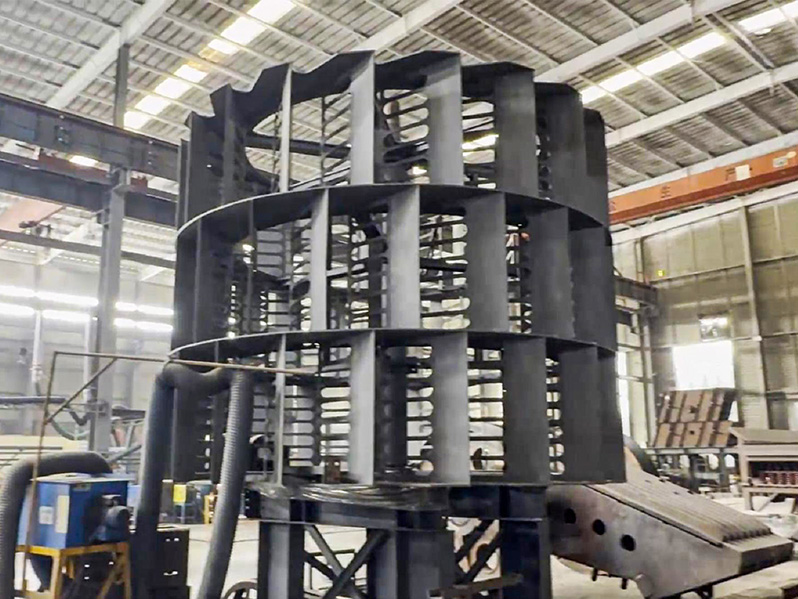

Wheel Washer is used to wash and separate soil and other impurities in sand for the purpose of increasing sand quality. Due to simple design, it has an ease in assembly process, the bucket wheel provides advantages to the users with low power consumption and water saving. It could be made single wheel and double wheel type.

Why choose wheel sand washing machine?

The sand washing machine is indispensable equipment for sand, gravel, aggregate washing plant and widely used in the aggregate, mines, building materials, construction, concrete and other industries.
Sand washer can remove the impurities covering the surface of the sand and stone to improve the sand and gravel product quality.
It has almost no wearing parts except the screen mesh, long service life.
Convenient maintenance, large processing capacity, low power consumption, high cleanliness.

Product features
1. High Quality
Reasonable design, new-type seal structure and totally-enclosed oil bath type transmission device.
2. Customized Design
The screen is composed of thick steel plate and the mesh is punched.
3. Good Performance
High capacity, low power consumption.

Water-saving, no pollution and long life span.

Working principle

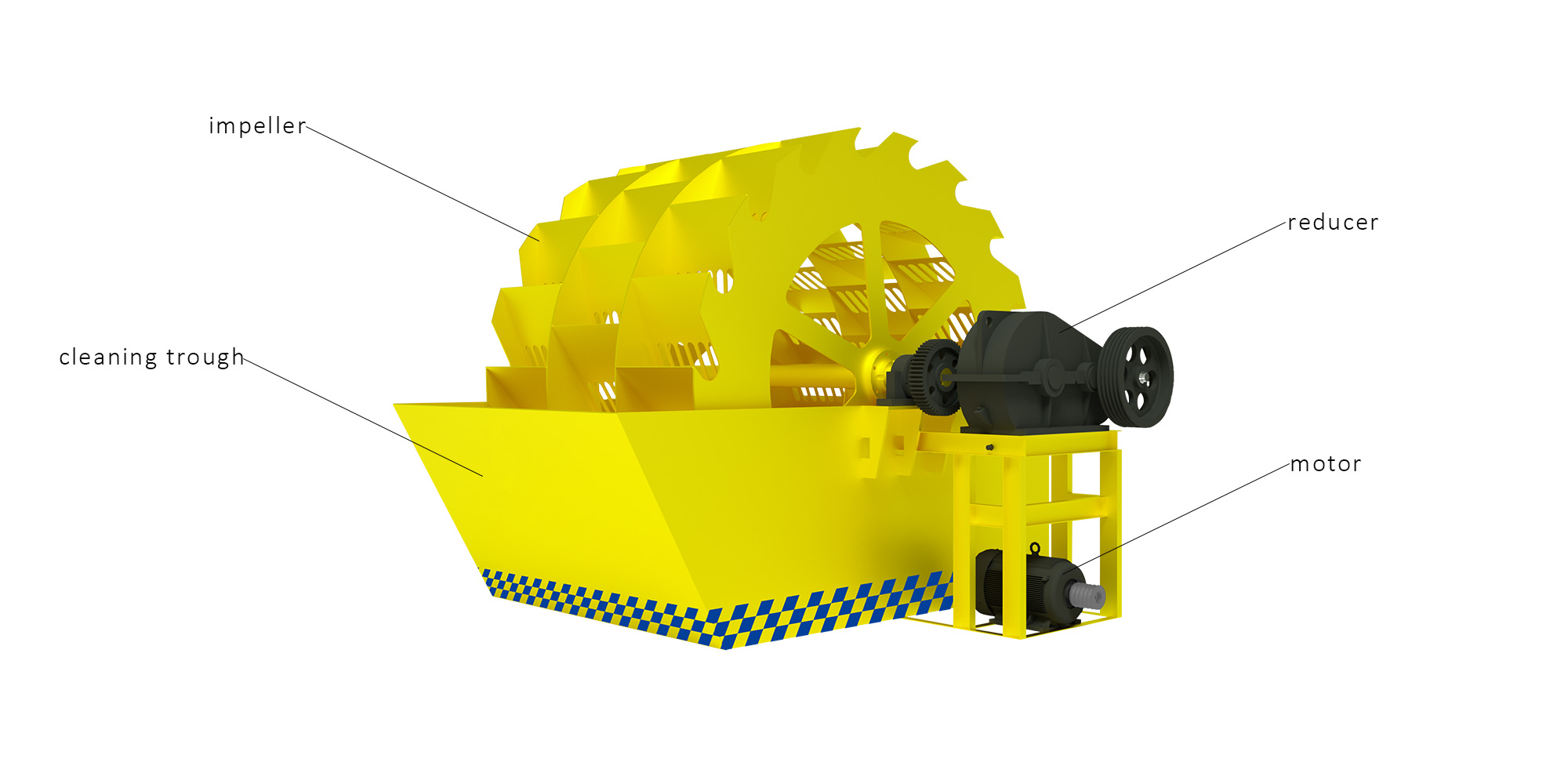

When XSD sand washing machine begin running, the impeller rotates slowly drived by motor and reducer, sand and gravel from the feed chute into the wash tank cleaning, rotation of the impeller take the water and sand away through the sieve filter out the clean sand. Finally, gravel from the rotating impeller into discharge chute and completion of gravel cleaning effect.

Get A Quote

Model	XS2414	XS2614	XS2814	XS3014	XS3021	XS3028	XS4030
Wheel size ( mm )	φ2400*1400	φ2600*1400	φ2800*1400	φ3000*1400	φ3000*2100	φ3000*2800	φ4000*3000
Feeding size  ( mm )	≤10	≤10	≤10	≤10	≤10	≤10	≤10
Capacity (t/h)	20-50	30-70	40-100	50-120	120-160	120-240	120-330
Power (kw)	4	5.5	7.5	7.5	15	22	37
