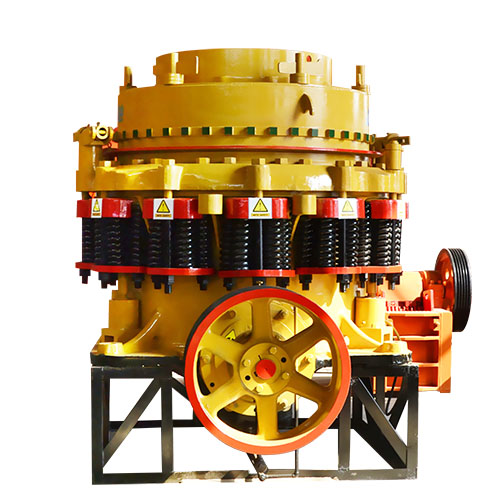

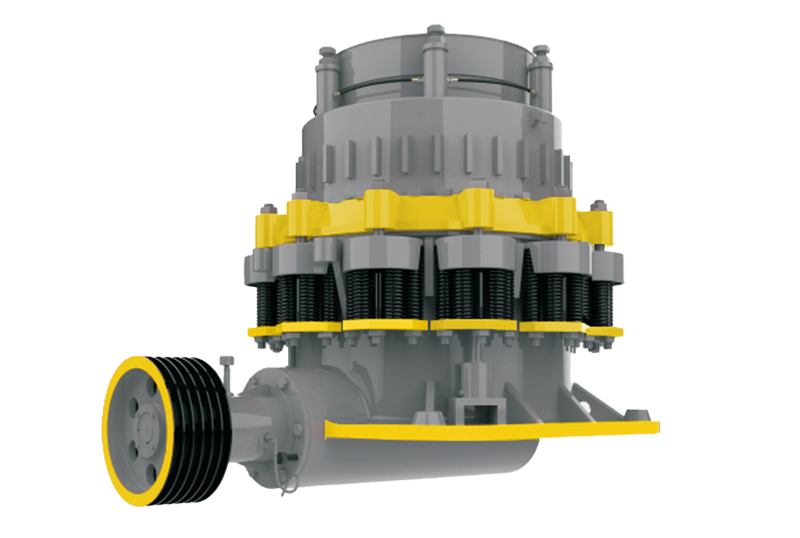

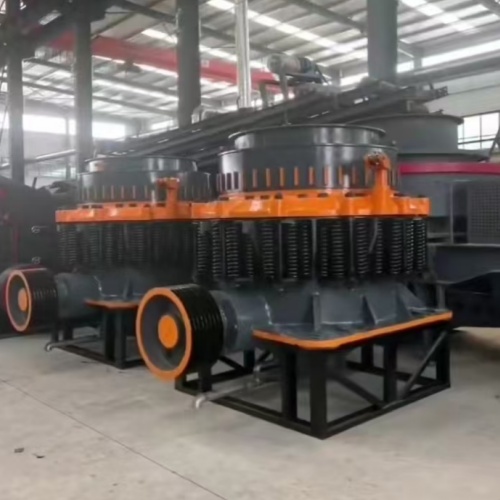

Symons cone crusher is also called compound stone cone crusher. It's semi hydraulic and semi spring cone crusher to crush mid-hard and above mid-hard ores an Symons cone crusher is also called compound stone cone crusher. It's semi hydraulic and semi spring cone crusher to crush mid-hard and above mid-hard ores and rocks efficiently. Symons crusher is popular stone crusher in aggregates production plant.

WHAT IS SYMONS CONE CRUSHER ?

Simmons cone crusher is an improved, optimized and updated replacement product of spring cone crusher. Based on the principle of laminated crushing, it has developed into a modern high-performance cone crusher integrating high swing frequency, optimized cavity shape and reasonable stroke. Symons cone crusher is suitable for various coarse, medium and fine materials whose compressive strength does not exceed 350MPa, such as river pebbles, granite, basalt, iron ore, shale, limestone, coal gangue, quartz, diabase, marble, copper ore, pebbles, etc.

Cone crushers come in various models, differentiated by their crushing principles and the particle sizes they produce. Qingdao WL company offers a range of advanced options, including :

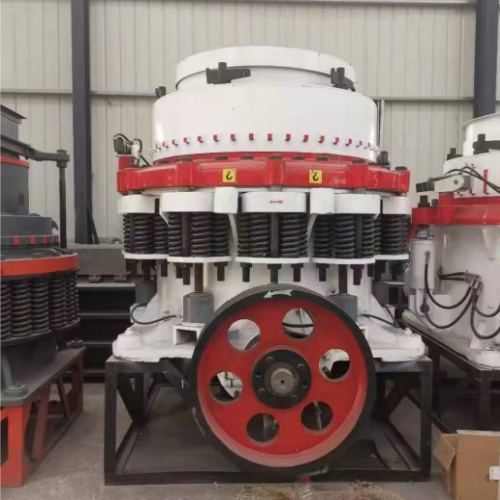

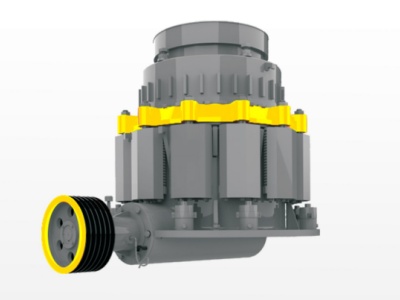

Symons cone crusher.

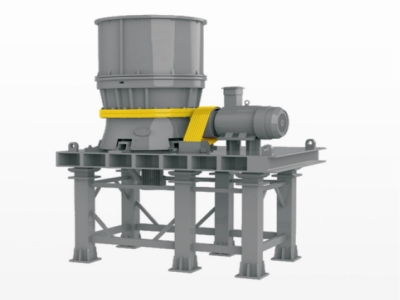

Single cylinder hydraulic cone crusher,

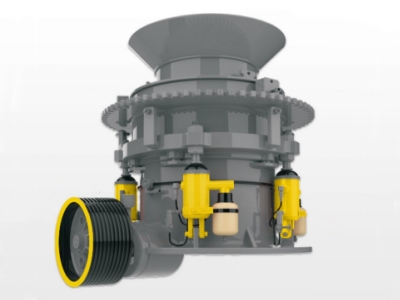

Multi-cylinder hydraulic cone crusher,

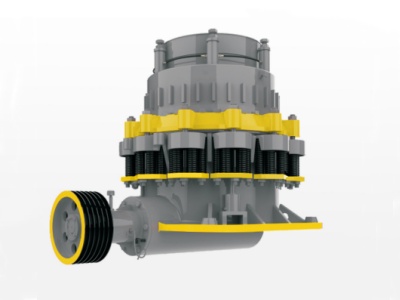

Spring cone crusher

Continue reading for an in-depth overview of each model’s unique features, applications and specifications.

Working principle

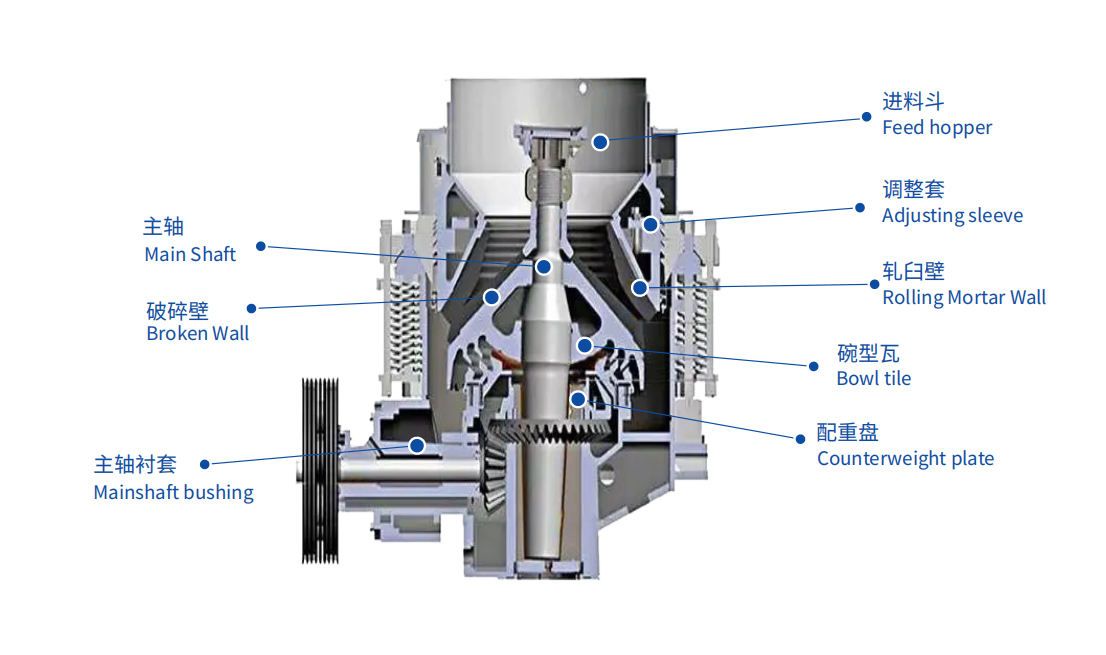

Cone crusher machine is mainly composed of cone crusher mantle, conehead, cone crusher liner, eccentric sleeve, main shaft, dustproof cover, frame, hydraulic cylinder and other cone crusher parts.

Symons Cone crusher is a compression type of stone crusher. The feeding rock is crushed by squeezing or compressing the feed material between a wear resistant mantle and a manganese concave or a bowl liner. The mantle is a moving part that gyrates in an eccentric motion though an eccentrically gyrating spindle.

When rock enters the top of the cone crusher, it is squeezed between the mantle and the bowl liner or concave, as the eccentric spindle rotates to cause the compression within the chamber. The material gets smaller as it moves down through the wear liner as the opening in the cavity gets tighter. Large pieces of ore are broken once, and then fall to a lower position where they are broken again. This process continues until the pieces are small enough to fall through the narrow opening at the bottom of the crusher. Final sizing and reduction is determined by the closed side setting or the gap between the two crushing members at the lowest point.

The Symons cone crusher is adjusted by spinning the bowl up or down manually or through hydraulic rams. A series of powerful springs give the necessary tramp protection without damage to the crusher.

WHY CHOOSE SYMONS CONE CRUSHER ?

1. Through the optimized design of the cavity and the combination of reasonable speed and stroke, CS cone crusher can perform the most work under the same diameter of the moving cone. Therefore, compared with the same type of spring cone crusher, it has higher performance and production capacity.

2. Based on the principle of lamination crushing, the proportion of cubes in the crushed s tone product is significantly increased, the needle-like stones are reduced, and the particle size is more uniform.

3. When unbreakable materials enter cone crusher crushing chamber, high-performance alloy steel springs are used as advanced overload protection system, it can effectively protect machine safety.

4. The automatic control system adopts large-diameter main shaft, heavy-duty main frame and independent thin oil lubrication system to ensure that the equipment is durable and reliable in operation.

HOW TO CHOOSE A RIGHT CONE CRUSHER ?

1. Production requirements: Determine your required capacity, such as daily or hourly output. Qingdao WL Machinery offers models with capacities ranging from 24 to 1498 t/h, suitable for various scales of production.

2. Material size: Choose the right crushing chamber type—medium, medium-fine, fine, or extra-fine—based on the maximum feed size and desired discharge size.

3. Material characteristics: Consider the hardness, moisture, and abrasiveness of the material. Single-cylinder cone crushers are ideal for medium to high-hardness materials like granite and basalt but are not suitable for sticky or wet materials.

4. Investment budget: You can choose the most suitable type of cone crusher at the present time according to the previous investment budget, or choose a similar impact crusher.

Specification

According to the size of the raw materials, the size of the output and the output of the machine, we will provide you with the appropriate crusher model. The specific parameters of each model are as follows. Please choose the crusher that suits you and I will provide you with detailed prices.

A. Standard Symons cone crusher parameters

B. Short cavity model Symons cone crusher parameters ( make fine material than standard model)

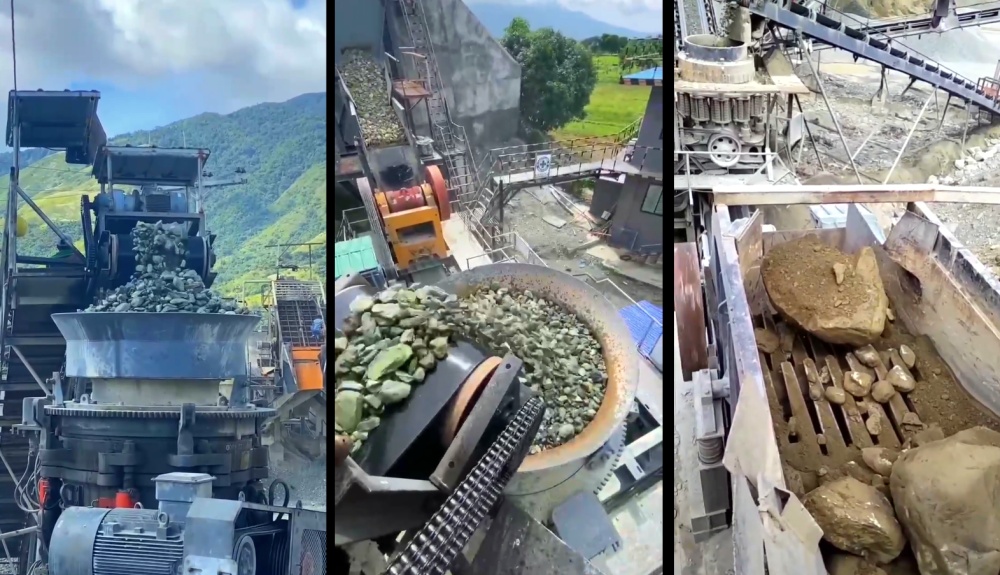

Symons crusher is popular stone crusher in aggregates production plant.
