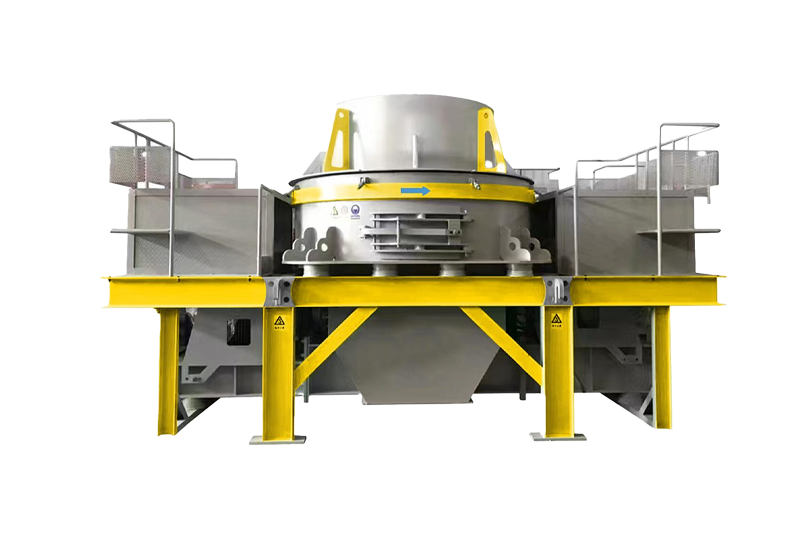

VSI sand making machine
The high efficient Vertical Shaft Impact Crusher (VSI) is a kind of sand making machine, sand maker. It can provide the best sand material for the highway, railway, construction project and concrete mixing station etc.
Feed size : 30-50mm
Power : 110-1000kw
Capacity : 60-600 t/h
Get A Quote
Specification
| Model | VSI-7611 | VSI-8518 | VSI-9526 | VSI-1140 | VSI-1145 | |
| Capacity (t/h) | Cascade and Center Feeding | 120-180 | 200-260 | 300-360 | 450-520 | 500-600 |
| Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | 250-360 | |
| Feeding Size (mm) | Soft Material | < 35 | < 40 | < 45 | < 50 | < 50 |
| Hard Material | < 30 | < 35 | < 40 | < 45 | < 45 | |
| Rotation Speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1180-1280 | |
| Power of the Double Motors (kw) | 2x55 | 2x90 | 2x132 | 2x200 | 2x220 | |
| Overall dimension L*W*H (mm) | 4100×2290×2350 | 4600×2280×2650 | 4600×2350×2850 | 5200×2600×3220 | 5500×2790×3320 | |
| Power Source | Customized : 220V 60hz, 240V 60hz, 380V 50hz, 400V 60hz, 415V 60hz ... | |||||
| Vibrating Sensor | Inspection Scope:0.1-20mm/s, it can be adjusted continuously. | |||||
| Hydraulic Lubrication Station | Power of Double Oil Pump | 2x0.31kw | ||||
| Safety | Double oil pumps make sure supply of oil with; Stop automatically without oil flow or oil pressure; Water cooled; Heating start the motor in winter. | |||||
| Overall Dimension L*W*H (mm) | 820x520x1270 | |||||
| Power of Oil-Box Heater | 2kw | |||||
